危重患儿桡动脉置管失败风险预测模型的构建及验证

doi:10.3761/j.issn.2096-7446.2026.09.003

摘要/Abstract

摘要：

目的构建并验证危重患儿桡动脉置管失败的风险预测模型。方法选取2023年2月—2024年4月广东省某三级甲等专科医院收治的405例患儿为建模组，2024年5月—8月收治的111例患儿作为验证组。收集患儿的一般资料、诊疗情况、实验室检查及穿刺信息，通过单因素及Logistic回归分析构建危重患儿桡动脉置管失败风险预测模型，绘制列线图并评价效果。结果全组516例患儿中，置管失败287例，总失败率为55.62%（287/516）。Logistic回归分析表明，身高（长）（OR=0.978）、急性生理学与慢性健康状况评分系统Ⅱ（OR=1.095）、操作者动脉置管年限（OR=0.737）、镇静（OR=0.415）、动脉搏动情况[动脉搏动一般（OR=3.292）、动脉搏动消失（OR=7.984）]及血红蛋白（OR=0.492）是危重儿童桡动脉置管失败的独立预测因子（P<0.05）。该模型建模组和验证组中的受试者操作特征曲线下面积分别为0.823和0.774。Hosmer-Lemeshow检验显示模型校准度良好（建模组χ²=7.123，P=0.624；验证组χ²=9.040，P=0.434）。临床决策曲线显示，该模型具有较好的临床实用性。结论该研究构建的风险预测模型具有良好的预测性能，有助于护士早期识别桡动脉置管困难患儿，为制订个性化置管方案提供参考依据。

关键词: 危重患儿, 桡动脉置管, 影响因素, 风险预测模型, 护理

Abstract:

Objective Construct and validate a risk prediction model for failure of radial artery catheterization in critically ill children. Methods A total of 405 children admitted to a Grade A tertiary specialized hospital in Guangdong Province from February 2023 to April 2024 were enrolled as the modeling cohort，and 111 children admitted from May to August 2024 were selected as the validation cohort. General data，clinical diagnosis and treatment information，laboratory test results，and catheterization records of the children were prospectively collected. Univariable analysis and logistic regression analysis were performed to construct a risk prediction model for radial artery catheterization failure in critically ill children. A nomogram was plotted and the model efficacy was evaluated. Results Among the 516 children in the group，287 cases experienced catheterization failure，with a total failure rate of 55.62%（287/516）.Logistic regression analysis identified body height（length）（OR=0.978），APACHE Ⅱ score（OR=1.095），operator’s catheterization experience（OR=0.737），sedation（OR=0.415），radial artery pulsation status（moderate pulse：OR=3.292，absent pulse：OR=7.984） and hemoglobin level（OR=0.492） as independent predictors of catheterization failure. The area under the receiver operating characteristic curve of the model in the modeling cohort and the validation cohort were 0.823 and 0.774，respectively. The Hosmer-Lemeshow test indicated good model calibration（modeling cohort：χ²=7.123，P=0.624；validation cohort：χ²=9.040，P=0.434）. The clinical decision curves demonstrated that the model had good clinical utility. Conclusion The risk prediction model established in this study exhibits good predictive performance，which facilitates early identification of children with difficult radial artery catheterization by nurses and provides a reference for formulating individualized catheterization protocols.

Key words: Critically Ill Children, Radial Artery Catheterization, Influencing Factors, Risk Prediction Model, Nursing Care

袁鹏英, 陈金璐, 罗毅, 冯林, 甘琦琳, 钟咏梅. 危重患儿桡动脉置管失败风险预测模型的构建及验证[J]. 中华急危重症护理杂志, 2026, 7(9): 1044-1051.

YUAN Pengying, CHEN Jinlu, LUO Yi, FENG Lin, GAN Qilin, ZHONG Yongmei. Construction and validation of a risk prediction model for failure of radial artery catheterization in critically ill children[J]. Chinese Journal of Emergency and Critical Care Nursing, 2026, 7(9): 1044-1051.

图/表 7

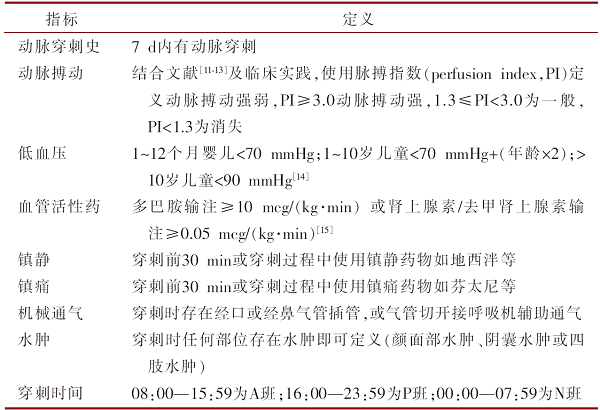

表1

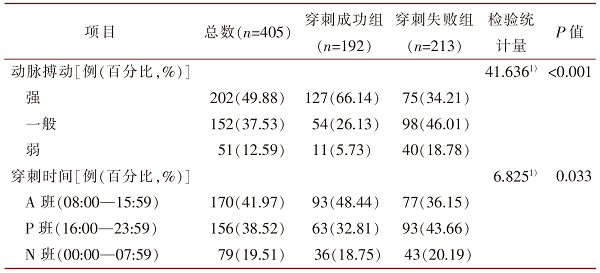

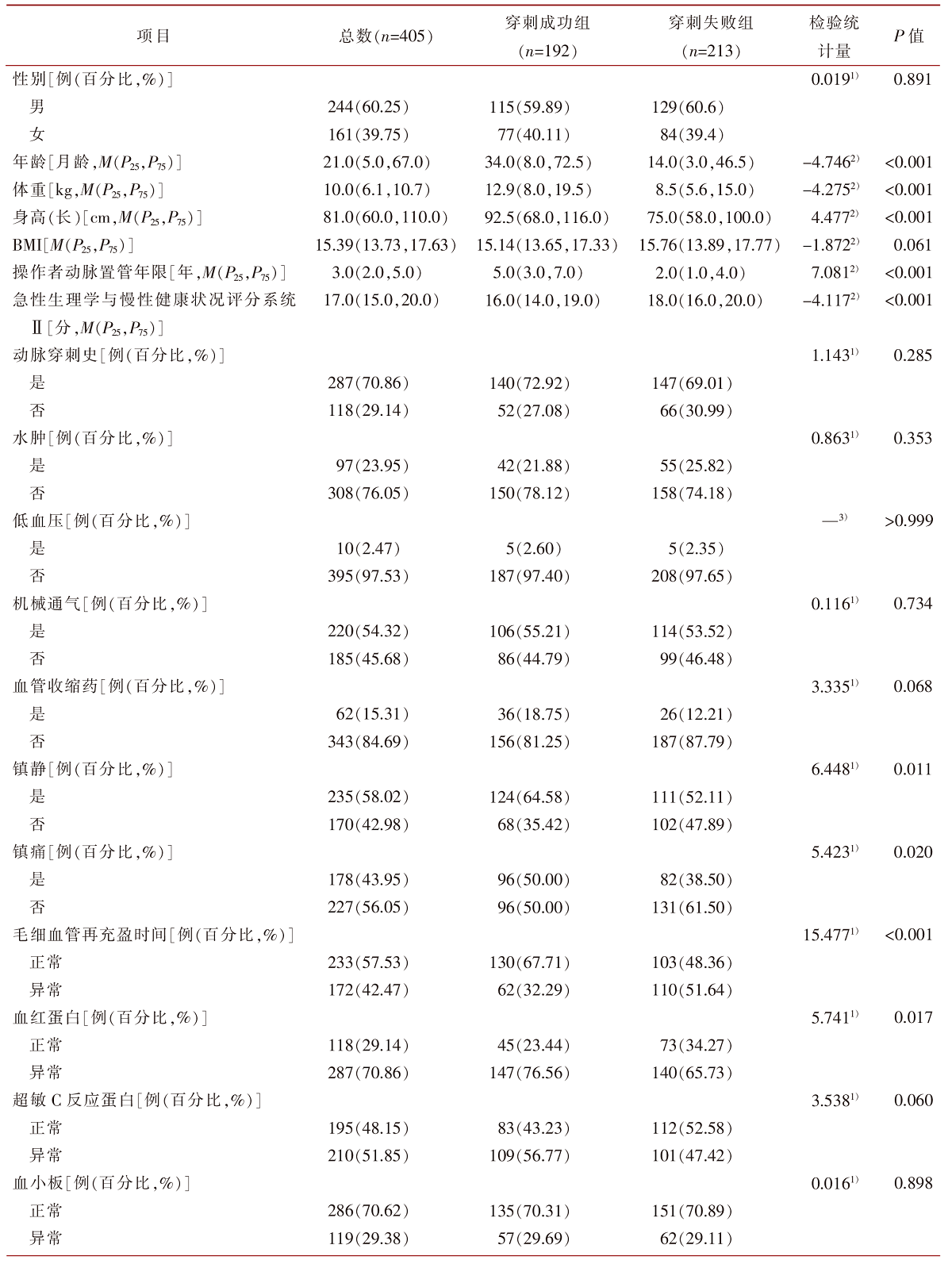

表2

续表2

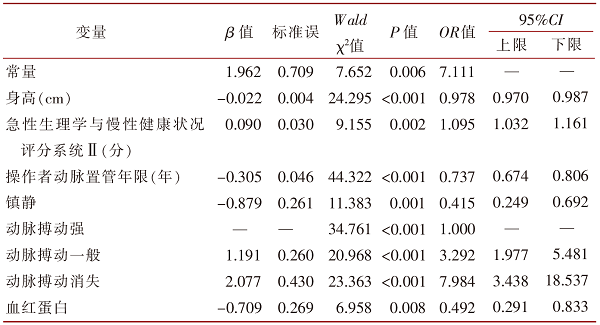

表3

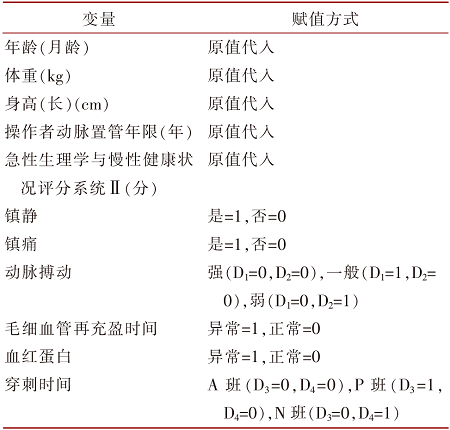

表4

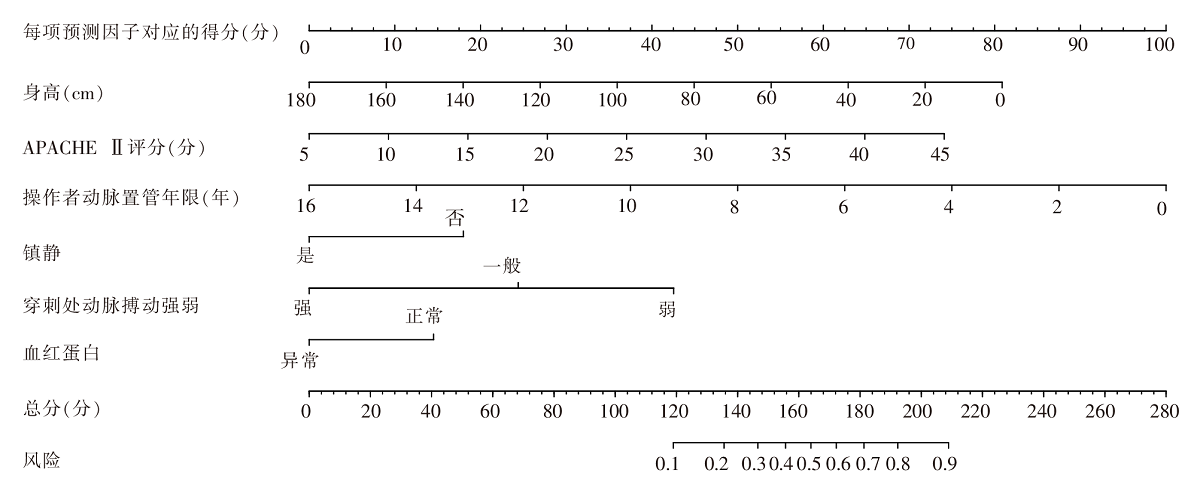

图1

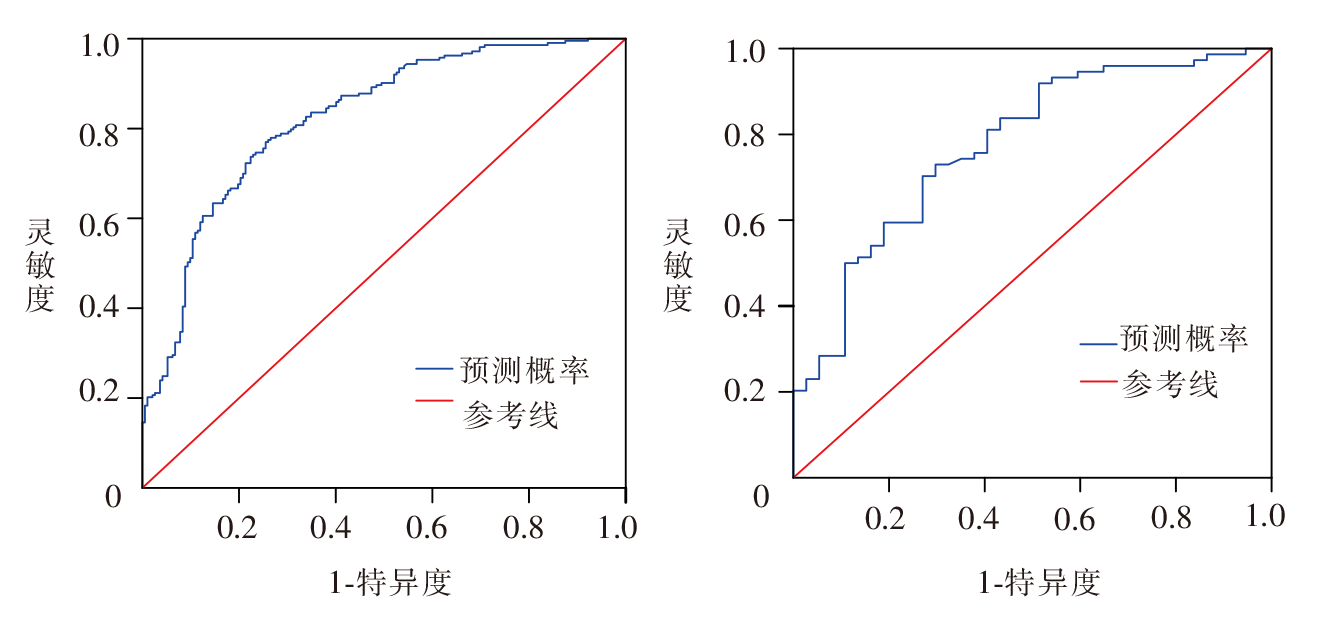

图2

参考文献 27

[1]	BAJAJ L. Arterial puncture and cannulation in children[EB/OL]. (2024-01-04)[2024-03-14]. https://www.uptodate.cn/contents/arterial-puncture-and-cannulation-in-childrensearch=%E5%8A%A8%E8%84%89%E7%BD%AE%E7%AE%A1&source=Out%20of%20date%20-%20zh-Hans&selectedTitle=1%7E150.
[2]	李田田, 文晓芳, 于美洋. 超声引导动态针尖定位技术应用于小儿桡动脉置管术的效果评价[J]. 国际医药卫生导报, 2022, 28(6):846-849.
	Li TT, Wen XF, Yu MY. Evaluation of the effect of ultrasound-guided dynamic tip positioning technology in radial artery catheterization in children[J]. Int Med Health Guid News, 2022, 28(6):846-849.
[3]	Huang HP, Zhao WJ, Wen F, et al. Application of ultrasound-guided radial artery cannulation in paediatric patients:a systematic review and meta-analysis[J]. Aust Crit Care, 2021, 34(4):388-394. doi: 10.1016/j.aucc.2020.09.001 pmid: 33097369
[4]	Yanko FM, Rivera A, Cheon EC, et al. Patient and technical factors associated with difficult arterial access and ultrasound use in the operating room[J]. Children, 2024, 11(1):21. doi: 10.3390/children11010021
[5]	King MA, Garrison MM, Vavilala MS, et al. Complications associated with arterial catheterization in children[J]. Pediatr Crit Care Med, 2008, 9(4):367-371. doi: 10.1097/PCC.0b013e318172d94f
[6]	Hebal F, Sparks HT, Rychlik KL, et al. Pediatric arterial catheters:Complications and associated risk factors[J]. J Pediatr Surg, 2018, 53(4):794-797. doi: 10.1016/j.jpedsurg.2017.08.057
[7]	周敏, 付勤, 王林娟, 等. 危重症患儿外周动脉导管置入与管理的最佳证据总结[J]. 中华护理杂志, 2024, 59(10):1255-1262. doi: 10.3761/j.issn.0254-1769.2024.10.015
	Zhou M, Fu Q, Wang LJ, et al. Summary of the best evidence for peripheral arterial catheters placement and management in pediatric intensive care unit[J]. Chin J Nurs, 2024, 59(10):1255-1262. doi: 10.3761/j.issn.0254-1769.2024.10.015
[8]	张婷. PICU危重患儿外周动脉导管失效风险预测模型的构建与验证[D]. 青岛: 青岛大学, 2024.
	Zhang T. Construction and validation of a risk prediction model for peripheral arterial catheter failure in critically ill children with PICU[D]. Qingdao: Qingdao University, 2024.
[9]	Raphael CK, El Hage Chehade NA, Khabsa J, et al. Ultrasound-guided arterial cannulation in the paediatric population[J]. Cochrane Database Syst Rev, 2023, 2023(3):CD011364.
[10]	乔梦圆, 王海燕, 秦梦真. 急诊重症监护室患者低血糖风险预测模型的构建及验证[J]. 中华护理杂志, 2023, 58(23):2835-2842. doi: 10.3761/j.issn.0254-1769.2023.23.003
	Qiao MY, Wang HY, Qin MZ. Construction and evaluation of a risk prediction model of hypoglycemia risk in emergency intensive care unit patients[J]. Chin J Nurs, 2023, 58(23):2835-2842. doi: 10.3761/j.issn.0254-1769.2023.23.003
[11]	Gunashekar S, Kaushal A, Kumar A, et al. Comparison between perfusion index,pleth variability index,and pulse pressure variability for prediction of hypotension during major abdominal surgery under general anaesthesia:a prospective observational study[J]. Indian J Anaesth, 2024, 68(4):360-365. doi: 10.4103/ija.ija_706_23
[12]	Mandala VK, Mendu SB, Bollaboina SKY, et al. Role of perfusion index and pulse variability index in the assessment of neonatal hemodynamics:a systematic review[J]. Cureus, 2023:15(10):e48058.
[13]	Pinto Lima A, Beelen P, Bakker J. Use of a peripheral perfusion index derived from the pulse oximetry signal as a noninvasive indicator of perfusion[J]. Crit Care Med, 2002, 30(6):1210-1213. doi: 10.1097/00003246-200206000-00006 pmid: 12072670
[14]	American Heart Association. Pediatric advanced life support provider manual[M]. Postresuscitation Management. 2016:171.
[15]	Kantor DB, Su E, Milliren CE, et al. Ultrasound guidance and other determinants of successful peripheral artery catheterization in critically ill children[J]. Pediatr Crit Care Med, 2016, 17(12):1124-1130. doi: 10.1097/PCC.0000000000000936
[16]	Knaus WA, Draper EA, Wagner DP, et al. APACHE Ⅱ-a severity of disease classification system:reply[J]. Crit Care Med, 1986, 14(8):755.
[17]	Oulego-Erroz I, Mayordomo-Colunga J, González-Cortés R, et al. Canalización arterial ecoguiada o por palpación del pulso en la unidad de cuidados intensivos[J]. An De Pediatría, 2021, 94(3):144-152.
[18]	Huber K, Menzenbach J, Velten M, et al. Lower patient height and weight are predisposing factors for complex radial arterial catheterization[J]. J Clin Med, 2023, 12(6):2225. doi: 10.3390/jcm12062225
[19]	余倩, 江利冰, 高建波. APACHEⅡ评分和TRISS评分预测ICU创伤患者预后的Meta分析[J]. 中华危重病急救医学, 2022, 34(1):59-63.
	Yu Q, Jiang LB, Gao JB. A comparison of the acute physiology and chronic health evaluation Ⅱ score and the trauma-injury severity score for outcome assessment in intensive care unit trauma patients:a meta-analysis[J]. Chin Crit Care Med, 2022, 34(1):59-63.
[20]	应佳云, 陆国平. 基于病理生理学的儿童脓毒性休克的救治[J]. 中国实用儿科杂志, 2024, 39(9):669-673.
	Ying JY, Lu GP. Treatment for children with septic shock based on pathophysiology[J]. Chin J Pract Pediatr, 2024, 39(9):669-673.
[21]	De Backer D, Ricottilli F, Ospina-Tascón GA. Septic shock:a microcirculation disease[J]. Curr Opin Anaesthesiol, 2021, 34(2):85-91. doi: 10.1097/ACO.0000000000000957
[22]	Hailemariam T, Sisay S, Mebratu Y, et al. Effects of sedatives on radiologic enema reduction in children with ileocolic intussusception:a systematic review and meta-analysis[J]. Eur J Radiol, 2024, 170:111237. doi: 10.1016/j.ejrad.2023.111237
[23]	葛荣领. 右美托咪定对重型颅脑损伤患儿脑功能及应激反应、炎症反应的影响[J]. 实用临床医药杂志, 2018, 22(21):16-19.
	Ge RL. Effect of dexmedetomidine on cerebral function,stress reaction and inflammatory response in children with severe craniocerebral injury[J]. J Clin Med Pract, 2018, 22(21):16-19.
[24]	Nakayama Y, Inagaki Y, Nakajima Y, et al. A practical training program for peripheral radial artery catheterization in adult patients[J]. Anesthesiology, 2016, 125(4):716-723. doi: 10.1097/ALN.0000000000001263
[25]	Eisen LA, Minami T, Berger JS, et al. Gender disparity in failure rate for arterial catheter attempts[J]. J Intensive Care Med, 2007, 22(3):166-172. pmid: 17569172
[26]	Hare GMT, Han K, Leshchyshyn Y, et al. Potential biomarkers of tissue hypoxia during acute hemodilutional anemia in cardiac surgery:a prospective study to assess tissue hypoxia as a mechanism of organ injury[J]. Can J Anesth Can D’anesthésie, 2018, 65(8):901-913.
[27]	Pastormerlo LE, Burchielli S, Ciardetti M, et al. Myocardial salvage is increased after sympathetic renal denervation in a pig model of acute infarction[J]. Clin Res Cardiol, 2021, 110(5):711-724. doi: 10.1007/s00392-020-01685-y
