呼吸机湿化罐自动补液装置的设计及应用

doi:10.3761/j.issn.2096-7446.2026.01.020

中华急危重症护理杂志 ›› 2026, Vol. 7 ›› Issue (1): 123-128.doi: 10.3761/j.issn.2096-7446.2026.01.020

• 护理技术研究 • 上一篇

呼吸机湿化罐自动补液装置的设计及应用

刘海金¹(), 吴碧瑜²^,^*(), 陈兰兰², 林彩霞², 陈月婷³, 黄琼琼⁴

1.泉州市第一医院急诊重症监护室泉州市 362000
2.泉州市第一医院护理部泉州市 362000
3.泉州市第一医院急诊抢救室泉州市 362000
4.泉州市第一医院妇科泉州市 362000

收稿日期:2025-02-11 出版日期:2026-01-10 发布日期:2026-01-06
通讯作者: 吴碧瑜，E-mail：921751641@qq.com
作者简介:刘海金：男，本科，主管护师，护士长，E-mail：515384753@qq.com
基金资助:
福建省2022年省级临床重点专科项目([2022]189)

Design and application of an automatic refilling device for ventilator humidification chambers

LIU Haijin¹(), WU Biyu²^,^*(), CHEN Lanlan², LIN Caixia², CHEN Yueting³, HUANG Qiongqiong⁴

^1. Emergency Intensive Care Unit， Quanzhou First Hospital， Quanzhou 362000， China
^2. Department of Nursing， Quanzhou First Hospital， Quanzhou 362000， China
^3. Emergency Resuscitation Room， Quanzhou First Hospital， Quanzhou 362000， China
^4. Department of Gynecology， Quanzhou First Hospital， Quanzhou 362000， China

Received:2025-02-11 Online:2026-01-10 Published:2026-01-06
Contact: WU Biyu，E-mail：921751641@qq.com
Supported by:
Fujian Provincial Clinical Key Specialty Project([2022]189)

摘要/Abstract

摘要：

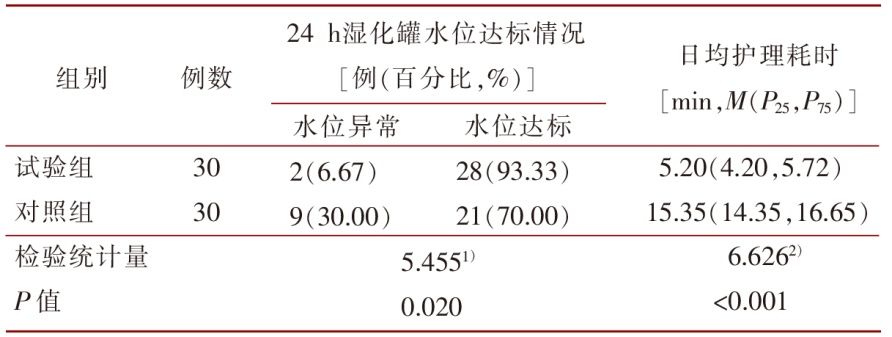

目的设计呼吸机湿化罐自动补液装置，弥补传统滴注法的不足，并评价其在机械通气患者中的应用效果。方法呼吸机湿化罐自动补液装置由非接触式电容传感器、控制器、固定器和电源等组成。装置采用常闭式电磁阀，通过电磁继电器与传感器连接并接收液位信号，控制输液器的开启和闭合。2024年7月—10月，便利选取泉州市某三级甲等医院重症医学科收治的机械通气患者60例，采用随机数字表法分为试验组和对照组各30例。试验组采用自动补液装置辅助添加湿化液，对照组采用输液器持续滴注法添加湿化液。评价两组湿化罐水位达标率、日均护理耗时、痰液黏稠度；收集护士的操作反馈。结果试验组湿化罐水位达标率高于对照组，日均护理耗时低于对照组，差异有统计学意义（均P<0.05）；试验组痰液黏稠度优于对照组，但广义估计方程结果显示，两组患者不同时间点痰液黏稠度差异的组间效应、时间效应、交互效应均不具有统计学意义（P>0.05）。护士对装置的认可度为96.65%。结论使用呼吸机湿化罐自动补液装置，实现了湿化液的自动补充，提高了湿化罐水位达标率；有利于减少护理耗时，可在一定程度上减轻护理工作负担；护士认可度高，具有较好的创新性与应用价值。试验组痰液黏稠度虽优于对照组，但差异无统计学意义（P>0.05），提示湿化效果可能受多因素影响，需进一步验证。

关键词: 气道管理, 气道湿化, 机械通气, 重症监护病房

Abstract:

Objective To design an automatic refilling device for ventilator humidification chambers to address the limitations of traditional drip infusion methods，and evaluate its application effects in mechanically ventilated patients. Methods The automatic refilling device comprised a non-contact capacitive sensor，controller，stabilizer，and power supply. A normally closed solenoid valve，connected via an electromagnetic relay，received liquid-level signals from the sensor to regulate the opening/closing of the infusion set. From July to October 2024，60 mechanically ventilated patients in the intensive care unit of a tertiary class A hospital in Quanzhou were enrolled and randomly assigned to an experimental group（n=30，automatic refilling device） or control group（n=30，traditional continuous drip infusion）. Outcomes included humidification chamber water-level compliance rate，daily nursing time （minutes/day），sputum viscosity，and nurses’ operational feedback. Results The experimental group demonstrated a significantly higher water-level compliance rate（P<0.05） and reduced daily nursing time compared to the control group（P<0.05）. Although sputum viscosity in the experimental group was clinically better，Generalized Estimating Equations（GEE） analysis revealed no statistically significant intergroup，time，or interaction effects（P>0.05）. Nurses’ evaluations showed a 96.65% acceptance rate for the device. Conclusion The use of automatic refilling device has achieved automatic replenishment of humidification fluid and improved the compliance rate of humidification tank water level. It is beneficial for reducing nursing time and can alleviate the burden of nursing work to a certain extent. Nurses have high recognition，and the device demonstrates innovation and practical value in critical care settings. Although the viscosity of sputum in the experimental group was better than that in the control group，the difference was not statistically significant，indicating that the humidification effect may be influenced by multiple factors and further verification is needed.

Key words: Airway Management, Airway Humidification, Mechanical Ventilation, Intensive Care Units

刘海金, 吴碧瑜, 陈兰兰, 林彩霞, 陈月婷, 黄琼琼. 呼吸机湿化罐自动补液装置的设计及应用[J]. 中华急危重症护理杂志, 2026, 7(1): 123-128.

LIU Haijin, WU Biyu, CHEN Lanlan, LIN Caixia, CHEN Yueting, HUANG Qiongqiong. Design and application of an automatic refilling device for ventilator humidification chambers[J]. Chinese Journal of Emergency and Critical Care Nursing, 2026, 7(1): 123-128.

图/表 4

参考文献 16

[1]	成人重症患者人工气道湿化护理专家共识组, 李向芝, 胡丽君, 等. 成人重症患者人工气道湿化护理专家共识[J]. 现代临床护理, 2023, 22(11):1-10.
	ECG-HNAACP, Li XZ, Hu LJ, et al. Expert consensus on artifi-cial airway humidification care in adult critical patients[J]. Mod Clin Nurs, 2023, 22(11):1-10.
[2]	滕娇, 秦寒枝, 郭文超, 等. ICU成人患者人工气道湿化管理的最佳证据总结[J]. 中华急危重症护理杂志, 2022, 3(6):550-555.
	Teng J, Qin HZ, Guo WC, et al. Summary of best evidence for humidification management of artificial airways in adult ICU patients[J]. Chin J Emerg Crit Care Nurs, 2022, 3(6):550-555.
[3]	Care AAFR, Restrepo RD, Walsh BK. Humidification during in-vasive and noninvasive mechanical ventilation:2012[J]. Respir Care, 2012, 57(5):782-788. doi: 10.4187/respcare.01766
[4]	Plotnikow GA, Accoce M, Navarro E, et al. Humidification and heating of inhaled gas in patients with artificial airway. A nar-rative review[J]. Rev Bras Ter Intensiva, 2018, 30(1):86-97. doi: 10.1590/S0101-31222008000300012
[5]	刘芳, 龚立超, 阮征, 等. 重症脑损伤机械通气患者加温加湿罐水位控制的临床验证效果[J]. 解放军护理杂志, 2017, 34(20):33-35.
	Liu F, Gong LC, Ruan Z, et al. Clinical application results of mechanical ventilation heating humidifying cans water level control in severe brain injury patients[J]. Nurs J Chin PLA, 2017, 34(20):33-35.
[6]	陆莉金, 李建芳. 新型气道湿化装置在急诊重症监护病房行机械通气患者气道湿化中的应用[J]. 广西医学, 2020, 42(16):2174-2177.
	Lu LJ, Li JF. Application of novel airway humidification device to airway humidification in emergency intensive care unit patients undergoing mechanical ventilation[J]. Guangxi Med J, 2020, 42(16):2174-2177.
[7]	张云云, 宋燕波, 田雅丽, 等. 不同呼吸机湿化管道系统在老年机械通气患者中的应用效果对比[J]. 川北医学院学报, 2016, 31(1):23-25.
	Zhang YY, Song YB, Tian YL, et al. Comparison of application efficacy of different ventilator tube-humidifying system in elderly patients with mechanical ventilation[J]. J N Sichuan Med Coll, 2016, 31(1):23-25.
[8]	陈小燕, 杨玉燕, 吴文霞, 等. 呼吸机湿化罐两种不同加水方法的比较[J]. 临床护理杂志, 2017, 16(5):78-80.
	Chen XY, Yang YY, Wu WX, et al. Comparison of two diffe-rent methods of adding water to humidifier tank of ventilator[J]. J Clin Nurs, 2017, 16(5):78-80.
[9]	林洁, 孙志明. SAS、PASS、Stata三种常用软件样本量计算方法及结果差异的比较[J]. 中国医药导报, 2015, 12(18):133-137.
	Lin J, Sun ZM. Comparing the differences between SAS,PASS and Stata for sample size calculation[J]. China Med Her, 2015, 12(18):133-137.
[10]	祁智, 杨萍. 自动止液管及呼吸机湿化罐的设计和应用[J]. 解放军护理杂志, 2022, 39(3):92-94.
	Qi Z, Yang P. Design and application of the automatic hy-draulic control pipe and ventilator humidifying tank[J]. Nurs J Chin PLA, 2022, 39(3):92-94.
[11]	Gao M, Kortum P, Oswald F. Psychometric evaluation of the USE(usefulness,satisfaction,and ease of use) questionnaire for reliability and validity[J]. Proc Hum Factors Ergon Soc Annu Meet, 2018, 62(1):1414-1418.
[12]	秦强. 儿童气道湿化治疗[J]. 中国实用儿科杂志, 2021, 36(3):184-188.
	Qin Q. Treatment for airway humidification in children[J]. Chin J Pract Pediatr, 2021, 36(3):184-188.
[13]	Haziot N, Ibrahim M, Zhu KX, et al. Impact of leaks and ven-tilation parameters on the efficacy of humidifiers during home ventilation for tracheostomized patients:a bench study[J]. BMC Pulm Med, 2019, 19(1):43. doi: 10.1186/s12890-019-0812-z
[14]	杨樱, 倪萍. 重症高血压性脑出血患者气道湿化不足的影响因素分析及护理对策[J]. 中西医结合心血管病电子杂志, 2022, 10(33):166-168,147.
	Yang Y, Ni P. Analysis of influencing factors of insufficient airway humidification in patients with severe hypertensive cerebral hemorrhage and nursing countermeasures[J]. Cardio-vasc Dis Electron J Integr Tradit Chin West Med, 2022, 10(33):166-168,147.
[15]	杨琳, 姚丽, 张志刚, 等. 呼吸机自动补液加湿罐的设计与应用[J]. 中国呼吸与危重监护杂志, 2020, 19(6):598-602.
	Yang L, Yao L, Zhang ZG, et al. The design and application of ventilator humidifier with infusing fluid automatically[J]. Chin J Respir Crit Care Med, 2020, 19(6):598-602.
[16]	钟紫凤, 叶锋, 邵乐文. 不同日常生活自理能力分级护理成本核算的研究[J]. 中华护理杂志, 2009, 44(3):215-217.
	Zhong ZF, Ye F, Shao LW. A study of cost accounting of nursing grading based on activity of daily living[J]. Chin J Nurs, 2009, 44(3):215-217.
